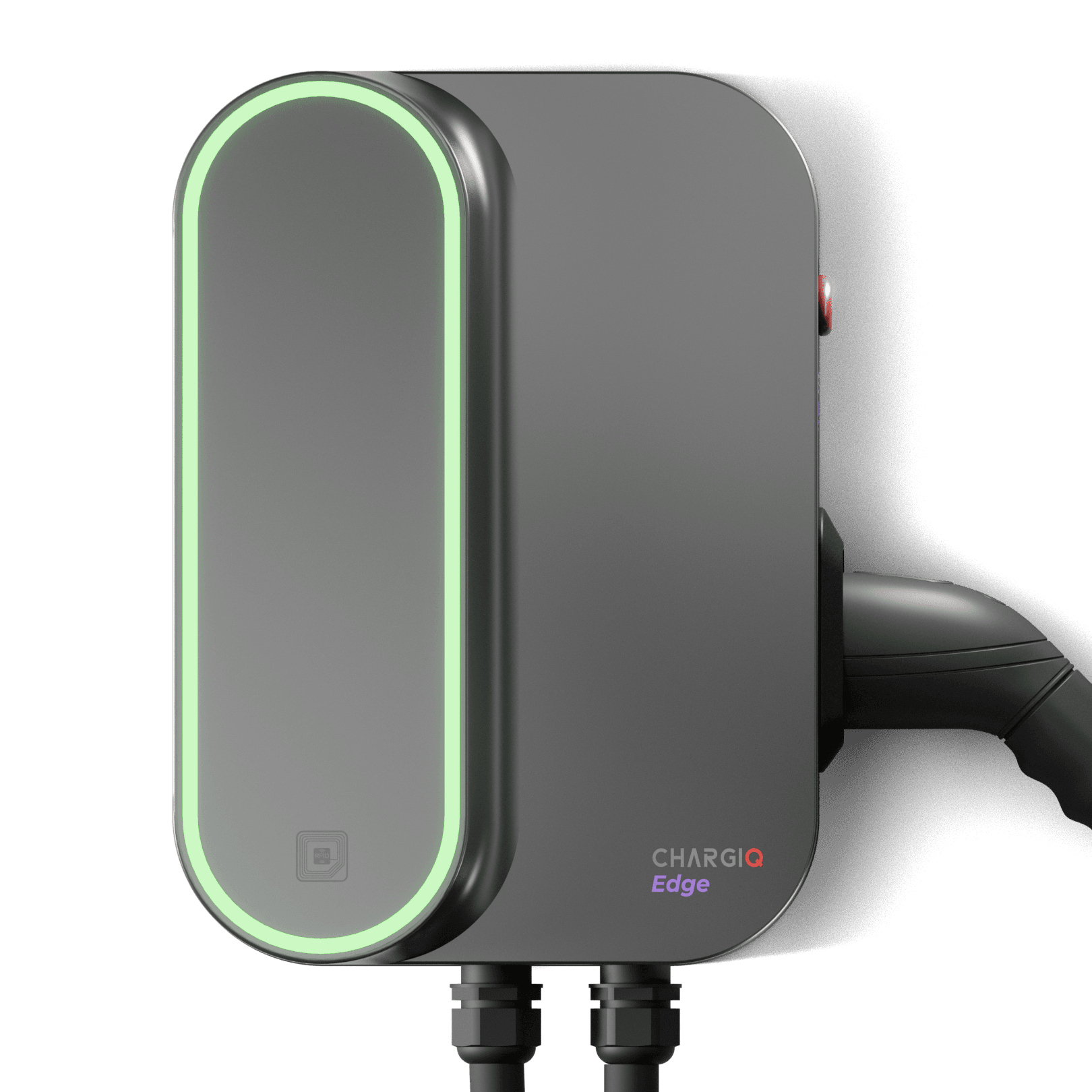

Everyday AC Charging
Chargiq Edge
Connected AC charging for sites and partner networks.
Chargiq Edge is an OCPP-enabled AC charger built for connected sites and partner networks. Dynamic load sharing, payment-ready integration and remote control make it simple to run charging across homes, workplaces, residential societies and hotels.
Select Power Variant
Select Finish
Talk to our team for pricing, availability and deployment requirements.
- Power OptionsPower Configurations
- 7.2 / 11 / 22 kW7.2 / 11 / 22 kW
- Charging TypeCharging Type
- ACAC (Alternating Current)
- Charging StandardCharging Standard
- Type 2 (IEC 62196)Type 2 (IEC 62196)
- ConnectivityConnectivity
- OCPP 1.6JOCPP 1.6J, OTA to 2.0
Technical Specifications
Engineering values for connected AC deployments.
- Product Name
- Chargiq Edge
- Charging Type
- Alternating Current (AC)
- Power Output Options
- 7.2 kW / 11 kW / 22 kW
- Charging Standard
- AC Type 2 (IEC 62196)
- Mounting
- Wall-mounted or pedestal
- Communication Protocol
- OCPP 1.6J, OTA upgradeable to 2.0
- Load Management
- Dynamic load sharing across chargers
- Payments
- UPI and POS terminal integration
Smart & Connected
AC charging that plugs into your network.
Chargiq Edge brings the dependable Chargiq AC platform online — managed over OCPP, shared intelligently across sites and ready for paid charging.
- OCPP-EnabledOCPP 1.6J with an OTA path to 2.0.
- Dynamic Load SharingDistribute power across multiple chargers.
- Payment-ReadyUPI and POS terminal integration.
- Remote ControlTrack usage, start/stop sessions, billing.
- Smart SchedulingShift charging to off-peak tariffs.
- Built ToughIP66 and IK10 rated enclosure.
Chargiq Edge in Detail
Compact, silent and connected — designed for shared charging at homes, workplaces, societies and hotels.
Standards & Compliance
Verified in independent testing structures to meet severe safety, grid, and build certifications.
- Charging StandardCharging Standard
- AC Type 2 (IEC 62196)
- CommunicationCommunication Protocols
- OCPP 1.6J, OTA upgradeable to 2.0
- SafetySafety Certifications
- IEC 61851, IEC 61000, AIS-138 Part 1
- Ingress ProtectionIngress Protection Rating
- IP66
- Mechanical ImpactMechanical Impact Class
- IK10
Built for connected sites and partner networks.
Shared, low-maintenance charging for residential societies, workplaces and hotels.
