Destination DC Charging
Chargion Prime
Compact DC charging, built for destination deployments.

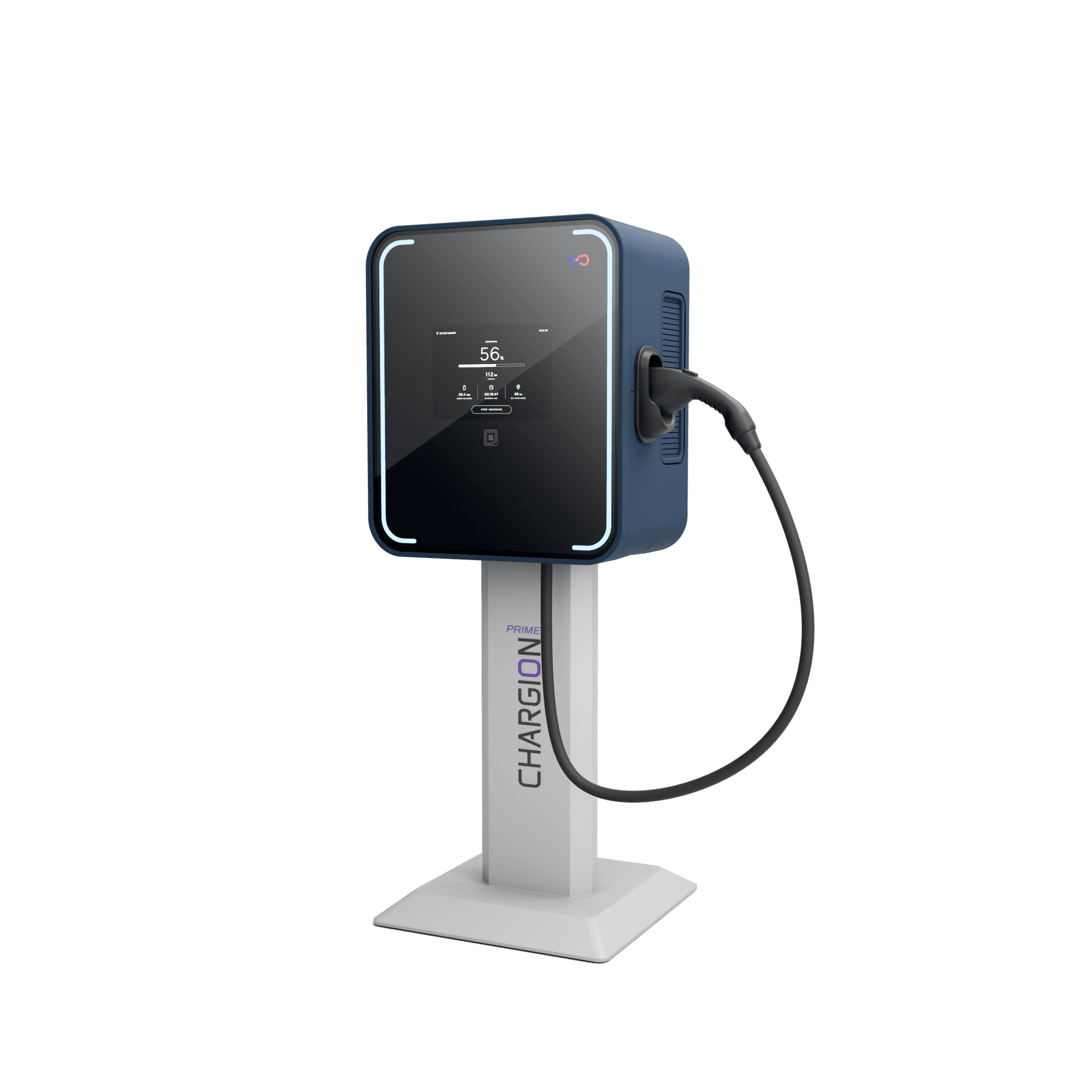

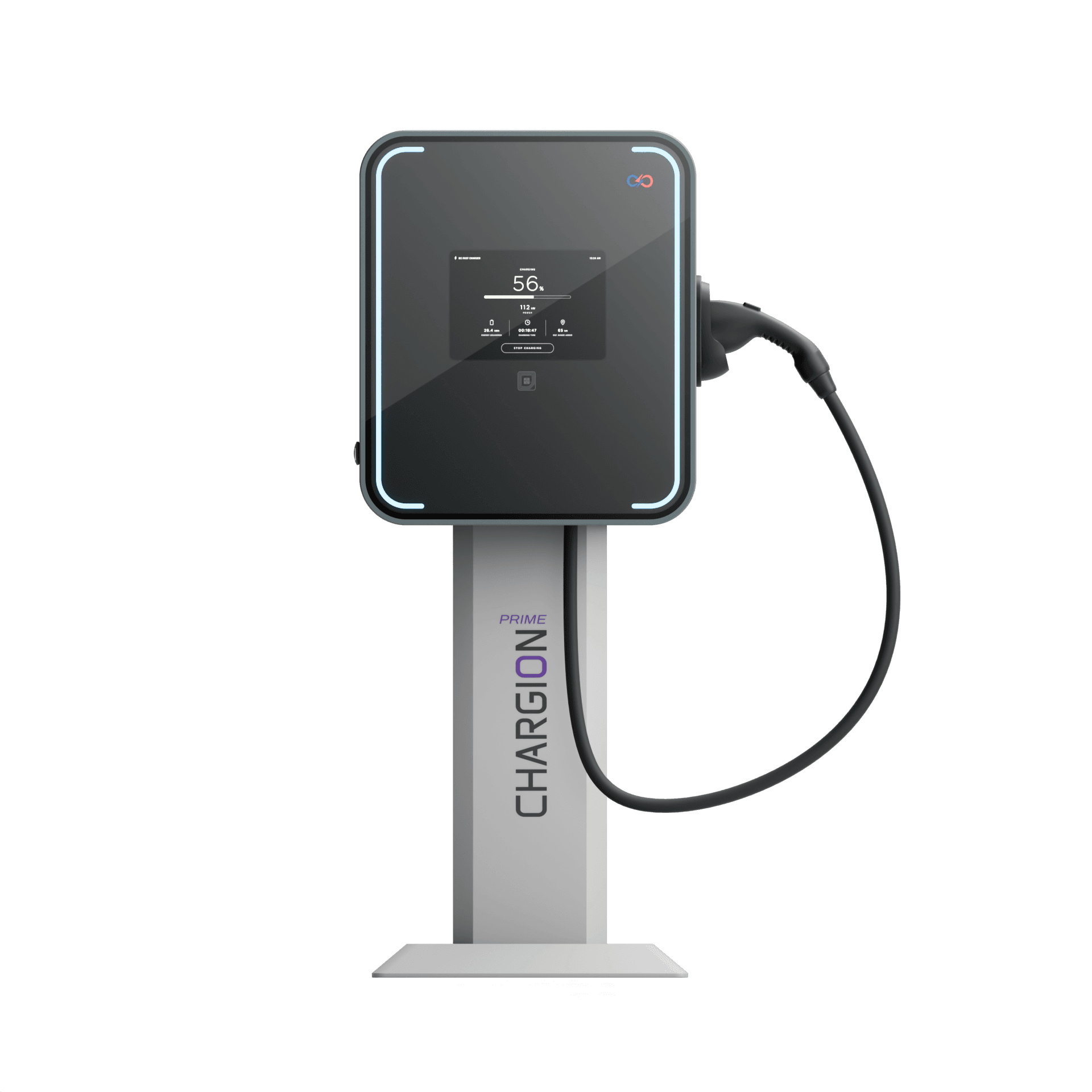

A compact 30 kW DC charging solution designed for public and destination charging sites where reliable, fast charging and efficient use of space matter.
Power Output
Select Color
Talk to our team for pricing, availability and deployment requirements.
- DC Fast ChargingDC Fast Charging
- 30 kW30 kW
- Destination ChargingDestination Charging
- DC ChargingDC Charging
- DC Output RangeDC Output Range
- 200-1000 V200-1000 V
- ConnectivityOCPP & Remote Monitoring
- Smart & ConnectedSmart & Connected
Technical Specifications
Everything you need to know about Chargion Prime.
- Product Name
- Chargion Prime
- Charging Type
- Direct Current (DC)
- Power Output
- 30 kW
- Output Voltage
- 200 - 1000 V DC
- Conversion Efficiency
- > 93% at optimal load
- Charging Protocol
- OCPP 1.6J / 2.0.1 Compliant
- User Interface
- 10 inch TFT Touchscreen
Built for Destination Charging
Fast charging. Built for compact public sites.
The Chargion Prime is engineered to bring robust, high-availability DC fast charging into spaces where traditional large cabinets cannot fit.
- 30 kW DC ChargingAccelerated charging speeds for retail turnarounds.
- Plug & ChargeISO 15118 enabled effortless authentication.
- Smart & ConnectedLoad balance ready & cellular connectivity built-in.
- 10 inch TouchscreenHigh-contrast sunlight readable brand interface.
- Dynamic Power SharingEfficient distribution based on vehicle demand.
- Remote Monitoring24/7 diagnostic telemetry and OTA updates.
Chargion Prime in Detail
View our premium craftsmanship, elegant architecture and deployment contexts.
Standards & Compliance
Verified in independent testing structures to meet severe safety, grid, and build certifications.
- Connector & GridConnector & Grid Interface
- CCS2 / CHAdeMO / GB-T compliant
- CommunicationCommunication Standards
- OCPP 1.6J / ISO 15118 / DIN 70121
- Safety StandardsIEC 61851-1 / IEC 61000 / AIS-138 / IEC 62196
- Built-in residual current monitor (30mA AC & 6mA DC)
- Ingress ProtectionIP54 waterproof and dust tight standard
- IP54 standard / IP55 available for heavy storm exposures
- Impact RatingIK10 high vandal-resistance rating
- IK10 high-durability rating
Built for destination charging.
Compact DC charging for public sites, destinations and everyday top-ups.
